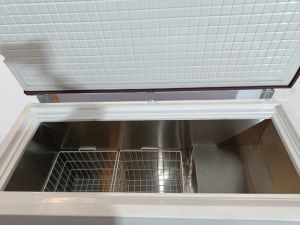

Ice Lined Refrigerator

MarkEn Make Ice Lined Refrigerator (ILR) has a unique cooling technology that ensures perfect temperature control with no risk of freezing of vaccines. With a Temperature Holdover of 24 Hours and requires only 8 hours per day of power to operate with High-tech energy management system for better Temperature control.

FEATURES:

1. Temperatures Range of +2 C to +8 C at Environmental Temperature +5°C to +50°C.

2. It is ideal when electricity supplies are rarely perfect and standby electricity supplies may not be available.

3. Designed for tropical climates.

4. The Hot Line at the mouth of the cabinet for Anti Condensation.

5. Compression Cycled type.

6. Refrigeration and insulation are CFC free.

7. All system tubing –Suction- Freezer – Condensing Tubing of minimum 99.97% of pure  Copper.

8. Provision of Defrosting.

9. Thermostat (NTC) to prevent Freezing of Vaccine.

10. Designed for minimum 10 years life with assurance of spare parts availability.

11. Quality Management: ISO 9001:2015, ISO 13485:2015

12. Electrical Safety Standards: IEC 60335-1 and IEC 60335-2-24, IEC 61010-1, IEC 61010-2-020 and 61010-2-101, IEC 61326-1, IEC 61326-2-6.

Audio Alarms and Visual Indications-

1. Temperature high  2. Temperature Low  3.Door open  4. Power failure

5. Sensor failure  6. Low Battery  7. Condenser Fault  8. Over Heating

9. High Ambient Temp  10. Sensor Failure  11. Communication Failure  12. USB Failure

Visual Indications-

1. Line in  2. Power On  3. Heater ON  4. System OK 5. Battery ON  6. Chart change

 7. Compressor On

ACCESSORIES :

1.      Stem Alcohol Thermometer Range -30°C to +50°C.

2.      Servo Controlled Voltage Stabilizer with Automatic High-Low Voltage cut-off and Time Delay Restart.
